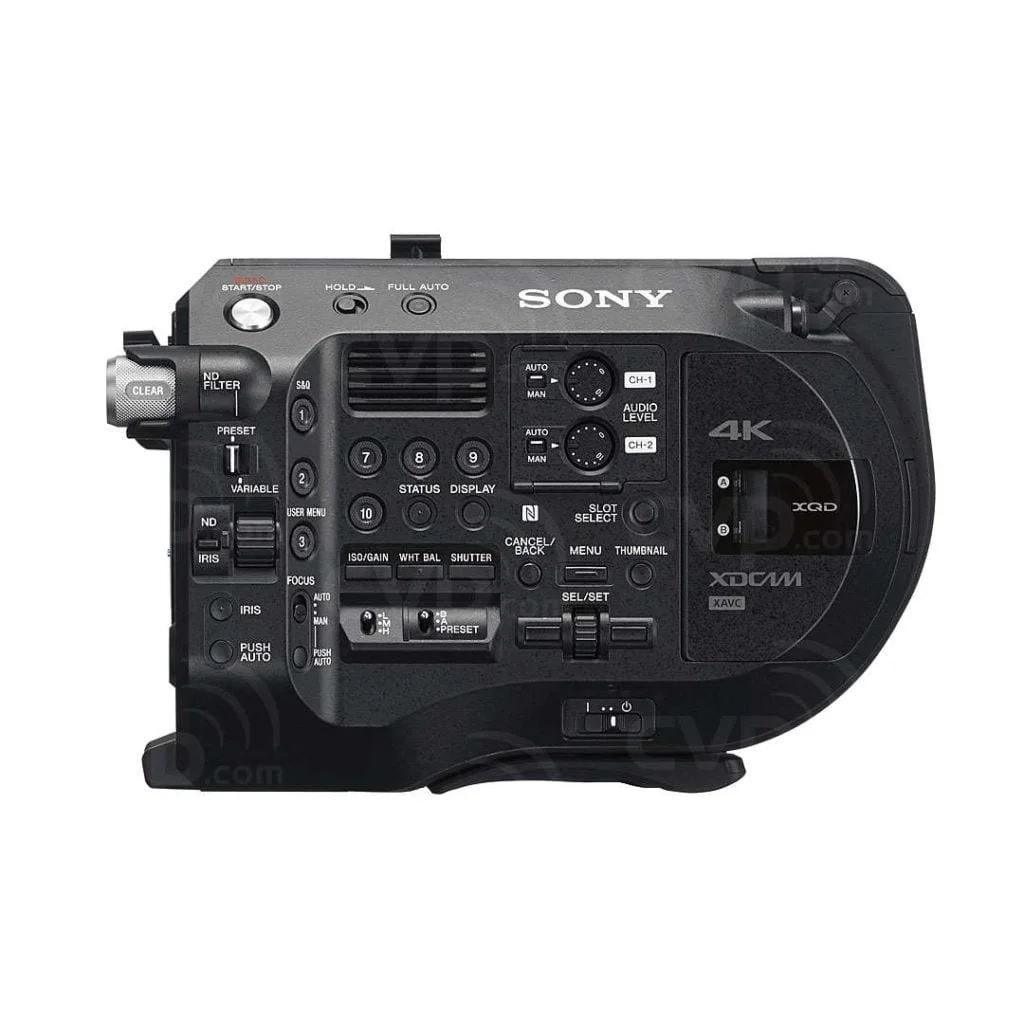

SONY PXW-FS7 II Body Only + 2 battery and charger with 128gb and 64gb XQD card

General
MassApprox. 2.0 kg (body only)
(Eyepiece, Grip Remote Control, BP-U30 battery,  without tripod mount, an XQD memory card)
Dimensions (W x H x D) *1158.9 x 245.2 x 247mm (body without protrusions)
Power RequirementsPower Requirements DC 12.0V (AC adaptor)
Please use genuine Sony batteries to ensure correct and safe operation *2
Power ConsumptionApprox. 19W (while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
Operating Temperature0°C to 40°C
32°F to 104°F
Storage Temperature-20°C to +60°C
-4°F to +140°F
Approx. 2 hrs. with BP-U60 battery while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
Approx. 3 hrs. with BP-U90 battery (while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
Recording Format (Video)XAVC-I mode:DCI4K 59.94P CBG, bit rate 600Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 50P CBG, bit rate 500Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 29.97P CBG, bit rate 300Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 23.98P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 24.00P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 25P CBG, bit rate 250Mbps, MPEG-4 H.264/AVC
XAVC-I mode:QFHD 59.94P CBG, bit rate 600Mbps, MPEG-4 H.264/AVC
XAVC-I mode:QFHD 50P CBG, bit rate 500Mbps, MPEG-4 H.264/AVC
XAVC-I mode:QFHD 29.97P CBG, bit rate 300Mbps, MPEG-4 H.264/AVC
XAVC-I mode:QFHD 23.98P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC
Recording Format (Video)XAVC-I mode:QFHD 25P CBG, bit rate 250Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 59.94P VBR, maximum bit rate 222Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 50P VBR, maximum bit rate 185Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 59.94i VBR, maximum bit rate 111Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 50i VBR, maximum bit rate 112Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 29.97P VBR, maximum bit rate 111Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 23.98P VBR, maximum bit rate 89Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 25P VBR, maximum bit rate 112Mbps, MPEG-4 H.264/AVC
XAVC-L QFHD 59.94P/50P mode: VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
Recording Format (Video)XAVC-L QFHD 29.97P/23.98P/25P mode: VBR, maximum bit rate 100Mbps, MPEG-4 H.264/AVC
XAVC-L HD 50 mode: VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
XAVC-L HD 35 mode:VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
XAVC-L HD 25 mode:VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC

MPEG HD422 mode:CBR, maximum bit rate 50Mbps, MPEG-2 422P@HL
Recording Format (Audio)LPCM 24 bits, 48 kHz, 4 channels
Recording Frame RateXAVC-I DCI4K mode: 4096×2160/ 59.94P, 50P, 29.97P, 23.98P, 24P, 25P
XAVC-I QFHD mode: 3840×2160/ 59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-I HD mode: 1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L QFHD mode: 3840×2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode: 1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L 35 mode: 1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L 25 mode: 1920×1080/59.94i, 50i
MPEG HD422 mode: 1920×1080/59.94i, 50i, 29.97P, 23.98P, 25P
1280×720/59.94P, 50P, 29.97P, 23.98P, 25P
Recording/Playback TimeXAVC-I mode QFHD 59.94P
When using QD-G128A(128GB):
Approx. 22 minutes
XAVC-I mode QFHD 50P
When using QD-G128A(128GB):
Approx. 26 minutes
XAVC-I mode QFHD 29.97P
When using QD-G128A(128GB):
Approx. 44 minutes
XAVC-I mode QFHD 23.98P
When using QD-G128A(128GB):
Approx. 55 minutes
XAVC-I mode QFHD 25P
When using QD-G128A(128GB):
Approx. 52 minutes
Recording/Playback TimeXAVC-I mode HD 59.94P
When using QD-G128A(128GB):
Approx. 59 minutes
XAVC-I mode HD 50P
When using QD-G128A(128GB):
Approx. 71 minutes
XAVC-I mode HD 59.94i
When using QD-G128A(128GB):
Approx. 118 minutes
XAVC-I mode HD 50i
When using QD-G128A(128GB):
Approx. 141 minutes
XAVC-I mode HD 29.97P
When using QD-G128A(128GB):
Approx. 118 minutes
Recording/Playback TimeXAVC-I mode HD 23.98P
When using QD-G128A(128GB):
Approx. 147 minutes
XAVC-I mode HD 25P
When using QD-G128A(128GB):
Approx. 141 minutes
XAVC-L mode QFHD 59.94P/50P
When using QD-G128A(128GB):
Approx. 87 minutes
XAVC-L mode QFHD 29.97P/23.98P/25P mode:
When using QD-G128A(128GB):
Approx. 131 minutes
XAVC-L 50 mode
When using QD-G128A(128GB):
Approx. 262 minutes
Recording/Playback TimeXAVC-L 35 mode
When using QD-G128A(128GB):
Approx. 374 minutes
XAVC-L 25 mode
When using QD-G128A(128GB):
Approx. 524 minutes
MPEG HD422 mode
When using QD-G128A(128GB):
Approx. 262 minutes
Lens
Lens MountE-mount (lever lock type)
Camera Section
Imaging Device (Type)Super35 type Single-chip Exmor CMOS
Effective Picture Elements17:9 4096 (H) x 2160 (V)
16:9 3840 (H) x 2160 (V)
Built-in Optical FiltersND filters
OFF: CLEAR
1: 1/4ND
2: 1/16ND
3: 1/64ND
Linear variable ND (1/4ND to 1/128ND)
Sensitivity (2000 lx, 89.9% reflectance)Video Gamma: T14 (3840 x 2160/23.98P mode 3200K)
ISO SensitivityISO 2000(S-Log3 Gamma D55 Light source)
Minimum Illumination0.7 lx (+18dB,23.98P,Shutter OFF,ND Clear, F1.4)
S/N Ratio57 dB (Y) (typical)
Shutter Speed1/3 sec to 1/9,000 sec
Slow & Quick Motion FunctionXAVC-I mode 3840×2160: 1 to 60 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
XAVC-I mode 1920×1080:1 to 180 frames (59.94P, 29.97P, 23.98P) 1 to 150 frames (50P,25P)
XAVC-L mode 3840×2160：1 to 60 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
XAVC-L mode 1920×1080: 1 to 120 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
White BalancePreset, Memory A, Memory B(1500K-50000K)/ATW
Gain-3, 0, 3, 6, 9, 12, 18 dB, AGC
Gamma CurveSTD,HG,User,S-Log2, S-Log3
Input/Output
Audio InputXLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: -40, -50, -60dBu
SDI OutputBNC(x2), switchable with 3G-SDI/HD-SDI SMTPE292M/424M/425M
USBUSB device, mini-B (x1)
Headphone OutputStereo mini jack (x1) -16dBu 16Ω
Speaker OutputMonaural
DC InputDC jack
RemoteStereo mini-mini jack (Φ2.5 mm)
HDMI OutputType A (x1)
Option4-pin, Type A for W-LAN (x1)
Built-in Microphone
Built-in MicrophoneOmni-directional monaural electret condenser microphone
Media
TypeXQD Card slot(x2)
SD Card slot(x1) for saving configuration data
Supplied Accessories
Supplied AccessoriesBody Cap (1)
Eyepiece (1)
Grip Remote Control (1)
USB wireless LAN module IFU-WLM3 (1)
Wireless remote commander (1) (RMT-845)
WA Adaptor Bracket (1)
AC adapter/charger (1) (BC-U1A)
BP-U30 battery pack (1)
Power cord (2)
USB cable (1)
Operating Guide (1)
CD-ROM “Manual for Solid-State Memory Camcorder” (1)
IS1293 power cord for India (Not supplied in some countries) (2)
Notes
*1The values for dimensions are approximate.
*2Viewable area measured diagonally.
*3ECS: Extended Clear Scan
*4Sony does not guarantee other manufacturers’ batteries to operate properly as noted in operation manual.
